Winter thermal system

Design phase

Current answer

Use two downstairs thermal anchors, then lighter upstairs fires.

Grand salons carry the main masonry-heater ambition. Kitchen and dining get the second heat nucleus. Upstairs remains selective and economical.

14 °C lift to target
390 m²mapped scope
46 kWcomfort equivalent
2-4 tsalon heater mass
8-24 hstorage window

Grand salon core

True symmetrical contraflow heater

Hoxter + rings + side mass
Chimney outlet
Collector
Top transfer header
6-8 rings

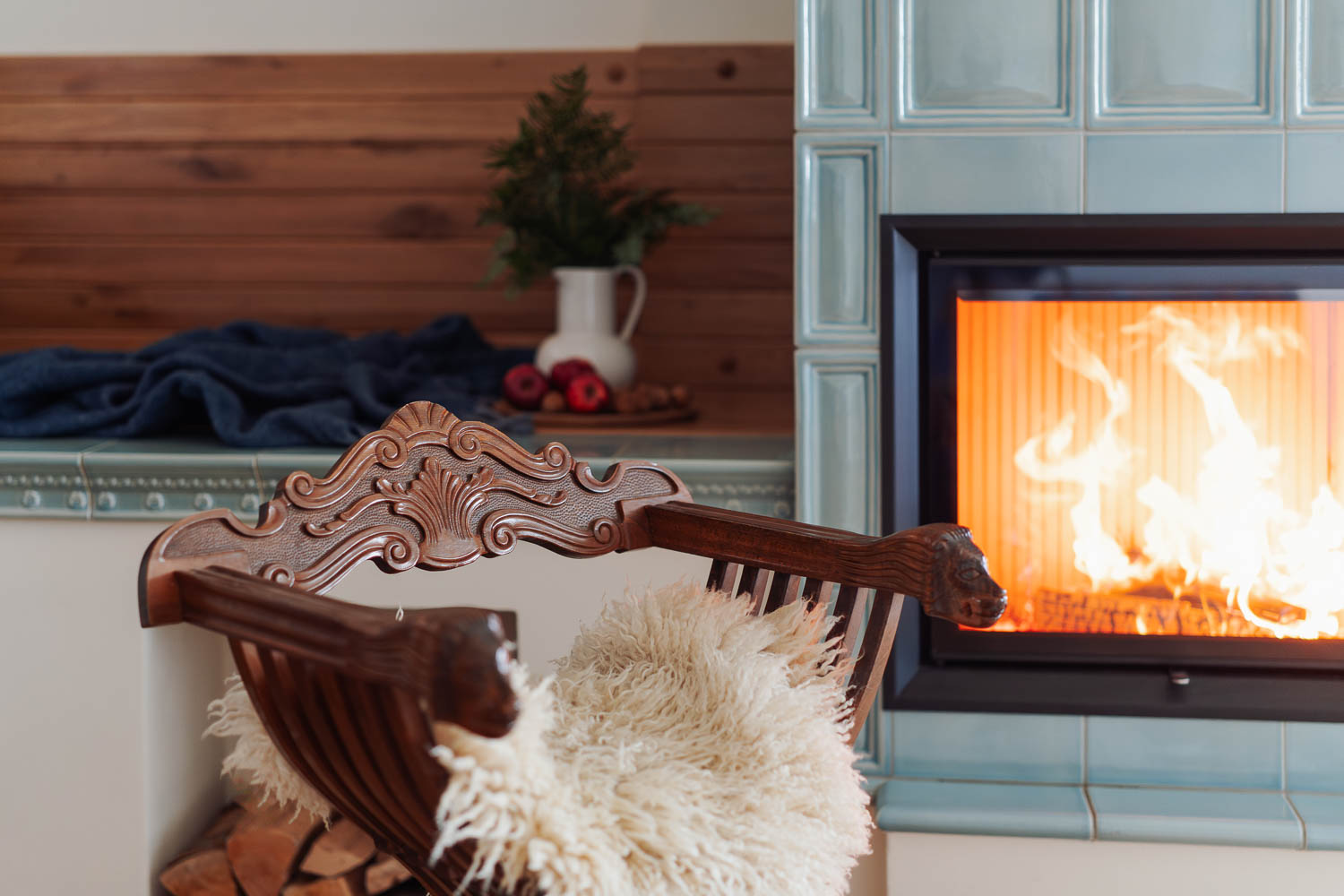

Hoxter insert
DownUp
UpDown

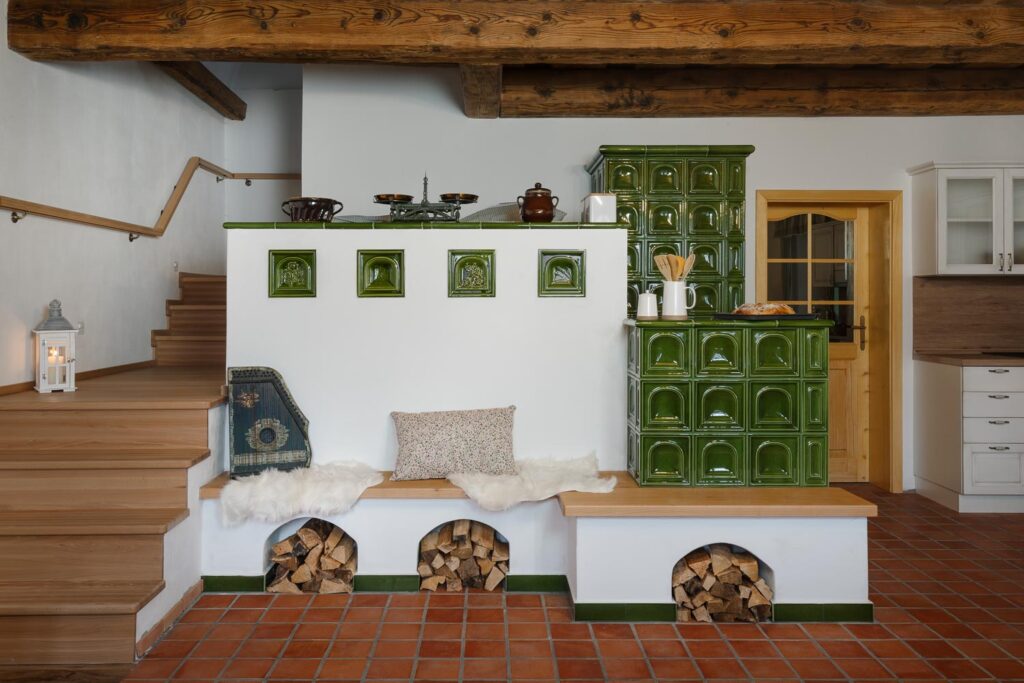

Refractory bench + bronze skin

Thermal nodes

  • 01Grand salons8-12 kW

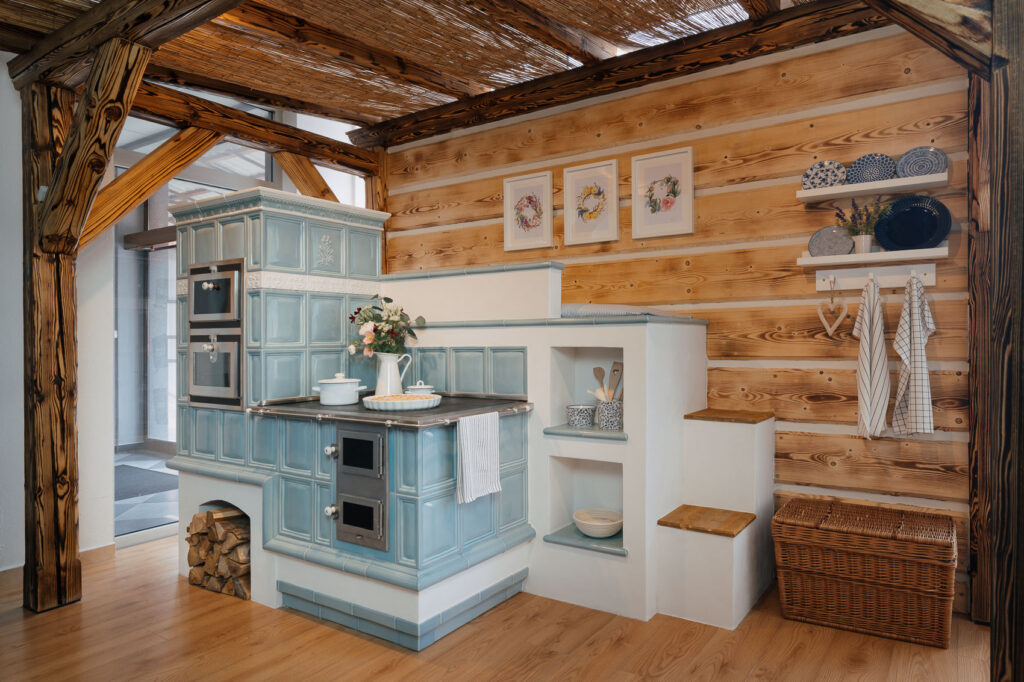

  • 02Kitchen + dining6-9 kW
  • 03Blue bedroom4-6 kW
  • 04TV salon6-8 kW

Shapr3D bodies

  1. Existing chimney wall
  2. Hoxter insert block
  3. Ring accumulator
  4. Orange smoke-path solid
  5. Refractory core
  6. Limestone outer mass

Clickable modelling pipeline

Geometry before physics

Pick a step

Phase 01

Shapr3D source geometry

Build the real stove anatomy as separate bodies before any simulation.

Model
Existing wall, Hoxter insert, ring envelope, side masses, bench, collector, chimney outlet.
Output
Dimensioned blockout with named bodies and first mass envelope.
Check
Everything aligns to the real chimney axis, floor line, and firebox outlet.
Risk
Pretty outer masonry hiding impossible internal geometry.
